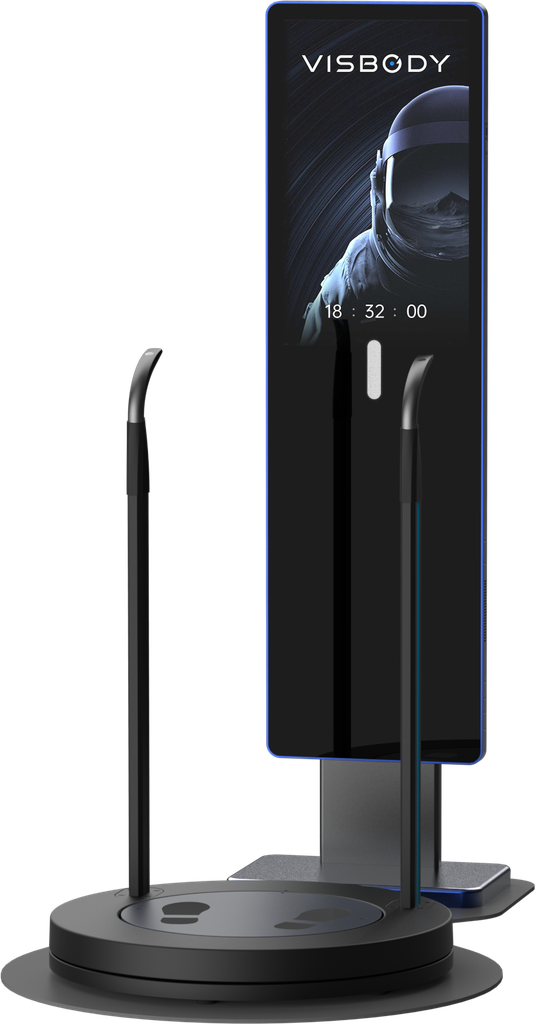

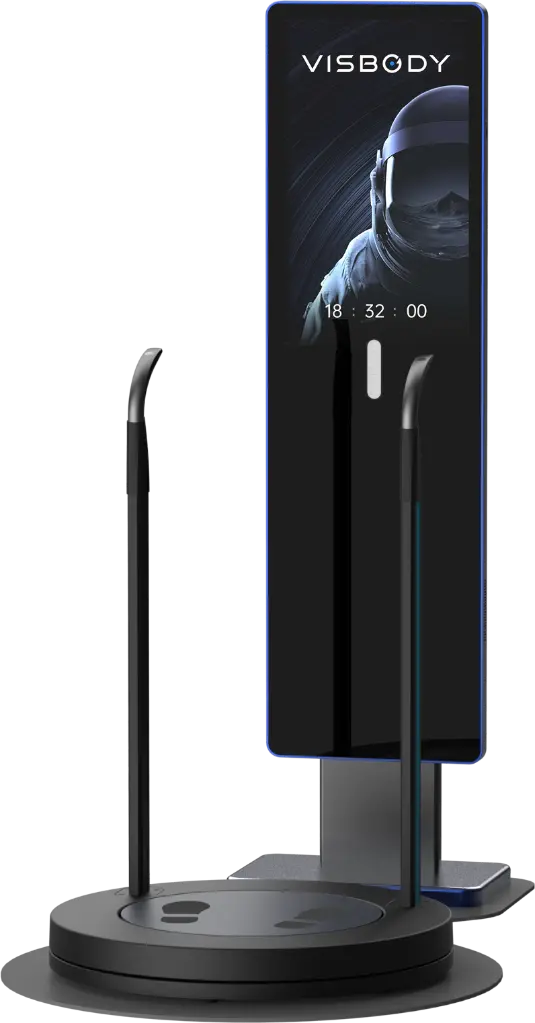

The Visbody M60 is the top-notch of the professional 3D body scanning and BIA machines which can be used in luxury medical and aesthetic clinics joining 2 technologies for the analysis of the human body: 3D Scanning & Bioelectrical Impedance (BIA), and self-developed AI models for comprehensive body assessment.
It is the world's first body scanner using the BDA (Body Density Assessment) and BIA technologies
Features:
High correlation with Gold Standard Technique - DEXA
Ultra-accurate body assessment
Smart new technology: Exclusive Artificial Intelligence (AI) vision and 3D optical reconstruction technology, using Class 1 infrared camera, and featuring a high-precision rotatable 3D avatar model
Imaging Technology: 1 built-in Intel cameras
Can generate 360° real 3D body model within 10s and automatically measure 18 body composition metrics 14 circumferences measurements, 10 posture analysis and a predictive 3D body shape simulation for a full body evaluation.
Uses 3D bone point detection technology to carry out the 10 key 3D posture analysis at millimeter accuracy
Testing Method: Direct Segmental Multifrequency Bioelectrical Impedance Analysis (DSM-BIA)
Unlike traditional bio-resistance measurement, Visbody M60 first adopts BDA and BIA fusion algorithm to apply stable body composition analysis and achieve medical-grade body composition control
5 Body Segments, 8-Point Tactile Electrodes, 4 Frequencies
Unlimited tests saved on dashboard
Supports two operation modes: manual operation and gesture recognition, providing full privacy space for customers
Real-time body comparisons
Compatible Printer: Epson L1119, HP1112 (Not provided)
Testing Age Range: 5-99 years old
Net Weight: 53 kg
Internet: Ethernet
Auto-calibration in 30 seconds
Aluminum main column, robust metal stand platform
Screen size: 27 inches, Resolution: 1920x1080
Comes with: Column, turntable and floor mat
Available in Black (standard) and White colors
Turntable only available in white
Certifications: CE & ISO
Report Form: PDF/Paper report/Webpage report
The dashboard provides 9 pages report detailing all measurements and assessments
Customized dashboard, screen display and report with healthcare professional logo
Data Storage: Automatically save all data/Remote viewing data report/Data report backup
Measurement Frequency: 5, 50, 250, 500kHZ
Power Source: Adapter: Power Input: 100-240V, 50-60Hz
Rated Voltage: 220V/50Hz
Additional Function: Guide: Human voice guide + Gesture recognition/Manual operation
Measured Weight: 10kg-250kg on VR platform and 175kg on turntable
Weight: Column: 53kg, Turntable: 10kg
Range of Height: 70cm-200cm
Dimensions: Column: 1681mm(H)*400mm(W)*685.3mm(T), Turntable: 74mm(H)*600mm(Dia), Floor Mat: 1830mm(L)*680mm(W)
Measurement Duration: about 1 minute
Operating Conditions: Humidity: 30% ~80%RH
Temperature: 10ºC ~ 40ºC/50ºF ~104ºF
Warranty: 1 Year Limited Warranty against defects of materials or workmanship on device
▲Warranty is only valid if an electrical adapted stabilizer is used: see compatible UPS
Measurement and Analysis Parameters:
Body Composition Analysis: Weight, Lean Body Mass (Kg), Muscle Mass (Kg), Body Water (L), Intra and extracellular water (L), Inorganic Salts (Kg), Protein (Kg) Body Fat Mass (Kg and %), Skeletal Muscle Mass (Kg), Body Mass Index, Waist to Hip Ratio, Basal Metabolic Rate, Visceral Fat Level, Segmental Fat and Lean Analysis (Kg), Metabolic Age
Postural Assessment: Forward Head Posture, Head Tilt, Rounded Shoulders Posture (left and right sides), Uneven Shoulders, Anterior and Posterior Pelvic Tilt, left and right Knee Evaluation, leg type (left and right legs)
Circumferences: Neck, left and right upper arms, bust, chest, high waist, mid waist, hipline, left and right thighs and minimum circumference of left and right thighs, left and right calves
Shoulder function: Abduction and Upthrow - left hand, abduction and upthrow - right hand, anteflexion and upthrow - right hand, anteflexion and upthrow - left hand
Spinal health assessment: Spine structure visualization, cervical spine score, thoracic spine score, lumbar spine score
Potential pain risk assessment: Neck pain risk, back pain risk, lumbar pain risk
Pelvic health assessment: anterior pelvic tilt risk score, posterior pelvic tilt risk score, pelvic rotation risk score
Balance assessment: sensory system evaluation, visual sensory evaluation, sway magnitude, static balance
Waist and Abdomen report: high waist(cm), high waist midline(cm), high waist lower line(cm), low waist lower line(cm), low waist midline(cm), low waist(cm), high waist upper volume (cm³), high waist lower volume (cm³), mid-waist volume(cm³), low waist upper volume(cm³), low waist lower volume(cm³), coutour analysis, back region, gluteal region
Cervical Measurement report: cervical flexion, cervical extension, cervical left lateral extension, cervical right lateral extension, cervical left rotation, cervical right rotation, cervical function assessment conclusion
Glute Shape Assessment report: rear and lateral view
Download the Visbody M60 Catalog and a sample of the Report.
