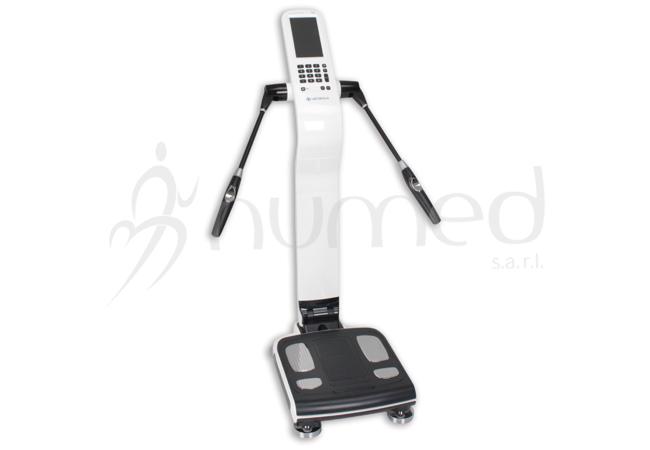

i35 Body Composition Analyzer

    8,200.00 8,200.00 USD


    This combination does not exist.

    Add to Cart Buy Now

    Internal Reference: ABB006

    Professional Bioelectrical Impedance Analysis technology system using multi-frequency measurement method providing precise yet meticulous Body Water and segmental Body Composition Analysis.


    • High correlation with Gold Standard Technique - DEXA

    • Optimization algorithm technology utilized to increase the precision of Body Composition Analysis and its reliability verified through clinical trials

    • Multi-frequency analysis (4 frequencies)

    • Tetrapolar 8-point tactile electrode method

    • High-quality, easy-to-use, user-friendly design with on-screen scale imaging system

    • Ergonomically designed, rotating hand electrodes that allow the user to take the test with ease

    • Focuses on personalized user management based on diverse input interface and database management

    • Activates "Blind Mode" to hide weight and fat result on screen for the privacy of individual users. Also operates in "Expert Test Mode", "Self-Test Mode", and "Classmate Mode"

    • Measures weight and allows manual weight input

    • Number of records saved on device (users and history data): 100000

    • Foldable design for improved mobility

    • Age of use: 3-99 years old

    • Age-specific analysis: analysis result sheet for both children and adult-use

    • Screen: 7.3 inch (600x1024), color touch LCD, GUI (Graphical User Interface)

    • Systematic body composition analysis: i35 has many expert uses such as medical research, compositional change analysis and sports medicine, etc.

    • A variety of systematic analysis will be made: body fat change prediction, children's growth curve monitoring system, and a broad range of well-referenced clinical database

    • Data Management: Data Searching, Data Backup/Recovery/Merge, Data Exporting (in Excel Format)

    • Calibration is not needed. Device allows auto-maintenance and calibration for: sound, brightness, LCD, frequencies, touch features, etc.

    • Free English software (with online and cloud options) and free app

    • Report can be customized with healthcare professional's logo and personal information

    • Adult report and Children report (from the i35 to the external printer) and more than 10 reports from the PC software

    • Warranty: 2 Year Limited Warranty against defects of materials or workmanship on device

    • Warranty is only valid if an electrical adapted stabilizer is used

    • Certifications: CE & FDA

    • Communication: RS-232, USB, Wi-Fi, Bluetooth, LAN

    • Measurement Current: 200uArms

    • Measurement Frequency: 5, 50, 100, 250kHz

    • Measurement Range: 10 ~1000Ω

    • Power Source: DC adaptor (input: 100-240VAC, 50-60Hz, 1.5A/ Output: 12V, 5.0A)

    • External Interface: RS-232C (9pin serial)1ea, USB host (type A) 2ea, Mini-USB B(type B)

    • 1ea, Bluetooth (optional), Wi-Fi (optional)

    • Input interface: Keypad, Touchscreen, Barcode reader

    • Additional Function: Data backup and restore to USB, DB export to CSV file

    • Measured Weight: 2 ~ 250kg (Resolution: 50g)

    • Weight: 17.5kg

    • Range of Height: 60.0 ~ 220.0cm

    • Dimensions: 360 x 559 x 1077 [WxLxH] mm

    • Measurement Duration: about 35 seconds

    • Operating Conditions: Humidity: 30% ~ 75% -

    • Temperature: +10ºC ~ +40ºC - Atmospheric pressure: 70 ~ 101.3kPa

    • Storage Conditions: Humidity: 10% ~ 80% -

    • Temperature: +10ºC ~ +60ºC - Atmospheric pressure: 50 ~ 101.3kPa

    Measurement and Analysis Parameters

    • Body Composition Analysis: Total Body Water (L and %), Fat Mass (kg and %), Muscle Mass (kg), Fat-Free Mass (kg), Protein (kg),Mineral (kg), Skeletal Muscle Mass (kg), Intracellular Fluid (kg and %), Extracellular Fluid (kg and %)

    • Muscle & Fat Analysis and History: Weight Analysis, Muscle Analysis, Body Fat Analysis, Weight History, Muscle History, Body Fat % History

    • Segmental Analysis: Segmental Muscle, Fat, and Body Balance Assessment

    • Body Type Analysis: Body Type Table, Body Type Graph Assessment with previous result

    • Weight Control: BMI (Body Mass Index), Obesity Degree (%), Desirable Weight (kg), Weight/Fat/Muscle Control (kg), FMI (Fat Mass Index), FFMI (Fat-Free Mass Index)

    • Extracellular Water Ratio

    • Abdominal Obesity Analysis: Waist Circumference, Abdominal Fat Ratio, Visceral Fat Area, Subcutaneous Fat Area, VSR (Visceral to Subcutaneous Fat Ratio)

    • Intake & Consumed Calories: BMR (Basal Metabolic Rate), TEE (Total Energy Expenditure), Calorie Consumption and Expected Fat Burning, Target Body Fat Percentage, Exercise Intensity, Expected Fat Burning

    • Health Score, Segmental Weight and Impedance

    • Nutrition and Exercise Recommendation, Diet Plan based on Calories and % of macronutrients, Physical Activity Frequency and Calories, Food Lists

    Measurement and Analysis Items [Children Result]

    • Body Composition Analysis: Total Body Water (L), Fat Mass (kg and %), Muscle Mass (kg),Fat-Free Mass (kg), Muscle Mass (kg), Protein (kg), Mineral (kg), Skeletal Muscle Mass (kg), Intracellular Fluid (kg and %), Extracellular Fluid (kg and %)

    • Muscle & Fat Analysis: Weight, Muscle, Body Fat Assessment with previous result

    • Growth Chart: Height and Weight with 18 years old Predicted Value

    • Body Composition History: History Graph for Weight, Muscle, Body Fat, Height, and mineral

    • Weight Control: BMI (Body Mass Index), Obesity Degree (%), Desirable Weight (kg), Weight/Fat/Muscle Control (kg), ), FMI (Fat Mass Index), FFMI (Fat-Free Mass Index)

    • Growth Evaluation: Muscle, Skeletal, Obesity Evaluation

    • Body Balance: Upper and Lower Body Balance Analysis

    • Health Score, Segmental Muscle and Impedance

    • Nutrition and Exercise Recommendation

    View a sample General Report in English and Arabic and Children Report in English and Arabic
    Download the Result Interpretation Booklet
    Watch an introductory video about the iSeries devices
    Click here to check the validation studies and multiple clinical cases for the i-Series devices, the FDA listing and Certification, the CE and ISO certificates.
