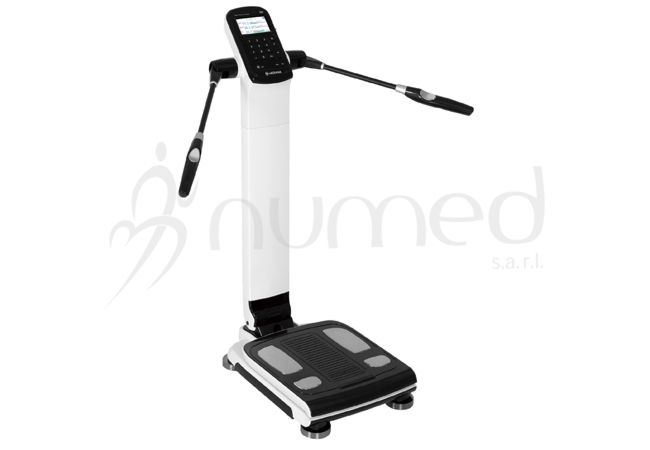

i20 Body Composition Analyzer

    4,300.00 4,300.00 USD

    4,300.00

    This combination does not exist.

    Add to Cart Buy Now




    Internal Reference: ABB004

    • State-of-art, ultra-precise body composition analyzer that provides an accurate analysis of body composition
    Features
    • High correlation with Gold Standard Technique - DEXA
    • Bi-frequency analysis
    • Tetrapolar 8-point tactile electrode method
    • High-quality, easy-to-use, user-friendly design with on-screen scale imaging system
    • Ergonomically designed, rotating hand electrodes that allow the user to take the test with ease
    • Focuses on personalized user management based on diverse input interface and database management
    • Activates "Blind Mode" to hide weight and fat result on screen for the privacy of individual users. Also operates in "Expert Test Mode" and "Self-Test Mode"
    • Measures weight and allows manual weight input
    • Weight of clothes can be removed (1 to 5kg) for more accuracy
    • Number of records saved on device (users and history data): 100000
    • Age of use: 3 to 99 years old
    • Screen: 4.3 inch (480x272), color touch LCD, GUI (Graphical User Interface)
    • Data Management: Data Searching, Data Backup/Recovery/Merge, Data Exporting (in Excel Format)
    • Calibration is not needed. Device allows auto-maintenance and calibration for: sound, brightness, LCD, frequencies, touch features, etc.
    • Free English and Arabic software and free app
    • Report can be customized with healthcare professional's logo and personal information
    • Adult report and Children report (from the i35 to the external printer) and more than 10 reports from the PC software

    • Warranty: 2 Year Limited Warranty against defects of materials or workmanship on device
    • ▲Warranty is only valid if an electrical adapted stabilizer is used
    • Certifications: CE, ISO & FDA
    • Communication: RS-232, USB
    • Measurement Current: 200uArms
    • Measurement Frequency: 10, 100kHz
    • Measurement Range: 10-1000Ω
    • Power Source: DC adaptor (input: 100-240VAC, 50-60Hz, 1.5A/ Output: 12V. 5.0A)
    • External Interface: RS-232C (9pin serial)1ea, USB host (type A) 2ea, Mini-USB B(type B) 1ea
    • Input interface: Keypad, Touchscreen
    • Additional Function: Data backup and restore to USB
    • Measured Weight: 2 ~ 250kg (Resolution: 50g)
    • Weight: 17kg
    • Range of Height (on software): 60.0 ~ 220.0cm
    • Dimensions: 360 x 559 x 992 [WxLxH] mm
    • Measurement Duration: about 25 seconds
    • Operating Conditions: Humidity: 30% ~ 75% - Temperature: +10ºC ~ +40ºC - Atmospheric pressure: 70 ~ 101.3kPa
    • Storage Conditions: Humidity: 10% ~ 80% - Temperature: +10ºC ~ +60ºC - Atmospheric pressure: 50 ~ 101.3kPa
    Measurement and Analysis Parameters

    • Body Composition Analysis: Total Body Water (L and %), Fat Mass (kg and %), Fat-Free Mass (kg), Protein (kg), Mineral (kg), Lean Body Mass (kg)
    • Muscle & Fat Analysis and History: Weight Analysis, Muscle Analysis, Body Fat Analysis, Weight History, Muscle History, Body Fat % History
    • Segmental Analysis: Segmental Muscle, Fat, and Body Balance Assessment
    • Weight Control: BMI (Body Mass Index), Obesity Degree (%), Desirable Weight (kg), Weight/Fat/Muscle Control (kg)
    • Visceral Fat & Abdominal Fat Ratio Assessment
    • Intake & Consumed Calories: BMR (Basal Metabolic Rate), TEE (Total Energy Expenditure), Calorie Consumption and Expected Fat Burning
    • Nutrition and Exercise Recommendation, Diet Plan based on Calories and % of macronutrients, Physical Activity Frequency and Calories, Food Lists.
    • Segmental Weight and Impedance, Calorie Consumption Table per Exercise
    View a sample of the i20 report and its Arabic version
    Download the Results Interpretation Booklet
    Watch an introductory video about the iSeries devices and another about the i20 test procedure
    Click here to check the validation studies and multiple clinical cases for the i-Series devices, the FDA listing and Certification, the CE and ISO certificates.

    South Korea
    24 Months
