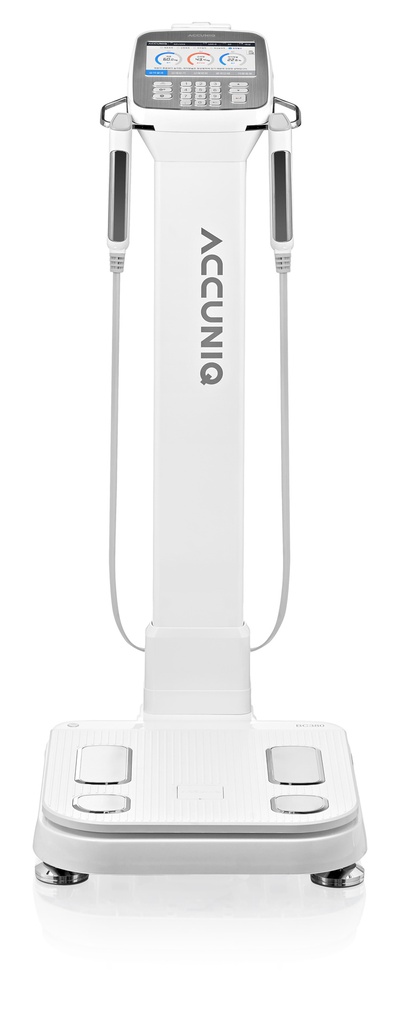

ACCUNIQ BC380 Body Composition Analyzer

The Accuniq BC380 is a BIA device loaded with measurement data while providing very highly accurate results.

Features

• The BC380 utilizes the most advanced bio-electrical impedance (BIA) analysis technology to provide accurate and dependable results that have been validated by DEXA analysis

• Tetra-polar electrode method using 8 touch electrodes

• 3 frequency analysis (5, 50, 250 kHz)

• Easy to use, with on-screen step by step instructions

• Built in Thermal printer: to use quickly and easily to print the analysis.

• Whole body and Segmental measurement (arms, legs and trunk)

• The measurement handle is connected with the cable and may be used by a user of any height

• Printing Logo: Printing logo or the name of hospital, address, contact information on the pre-printed result sheet

• ID Usage: It is selected whether ID is used for subjects or not

• Scale Offset: Compensating measured value of weight scale

• Clothes: Compensating the weight of clothes worn

• Print Position: Adjusting print position to fit to the pre-formatted result sheet in the direction of up/down and left/right

• USB Storage: You can save or retrieve all measurement data

• QR Code: Scan the QR code on the LCD or result sheet, transmit it to the management website, and check the results

• Date Time: Setting current date and time

• Measurement Result (Client Tracking Software Provided): ACCUNIQ MANAGER

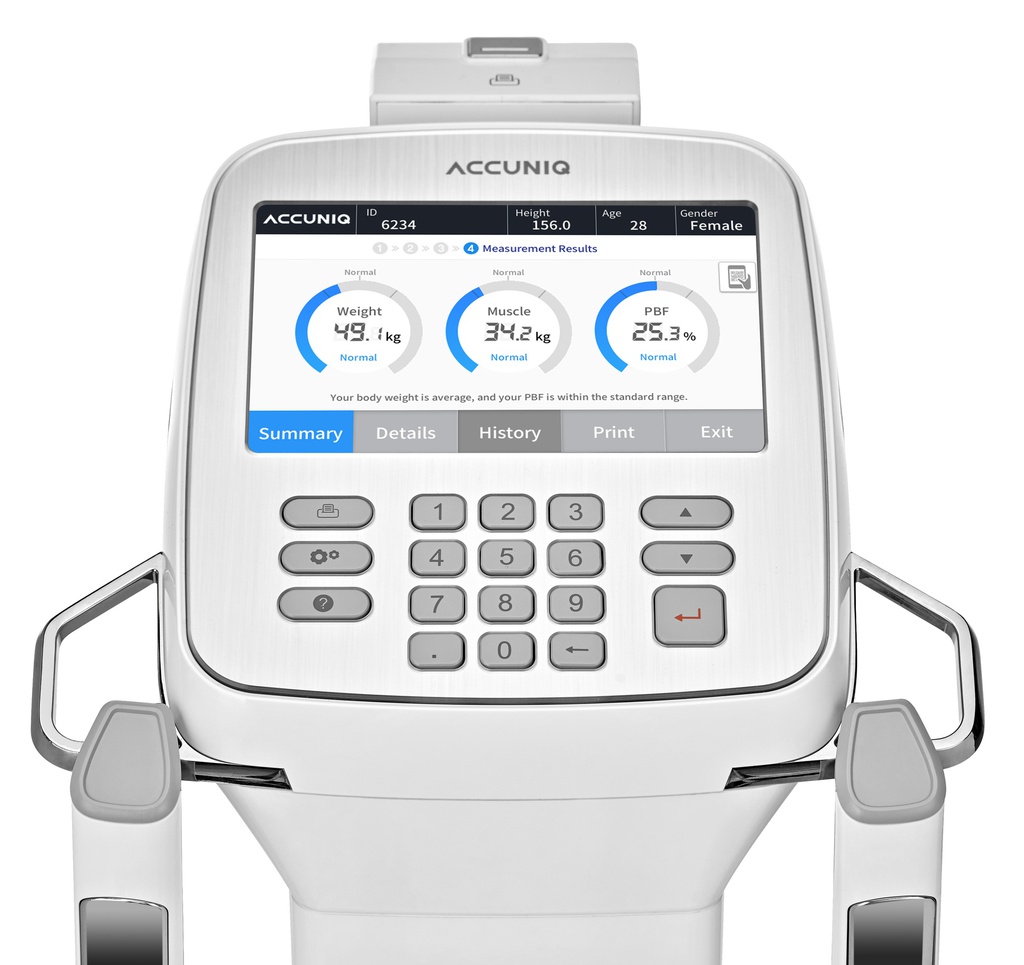

• Screen: 7-Inch-Wide Color LCD

• Touch Screen: Touch screen’s sensor location adjustable

• Data Storage: Up to 100,000 data units can be stored when using an ID.

• Measurement Mode: Scale mode / Body composition mode

• Various Result Sheets: Body composition result sheet, Result sheet for Infants (Optional)

• Measurement Current: Approx. 180 μA ± 15

• Measurement Range: 100-950 Ω

• Power Consumption: 60VA

• Power Consumption: Input: 100-240 VAC, 50/60 Hz, 1.4-0.7, Output: DC 12 V, 5.0 A, 60 W MAX

• Input interface: Key pad, PC remote control

• Input Device: Touchpad, Keypad

• Transmission Device: 5 USB ports, 2 RS-232C ports, Wi-Fi (basic), Bluetooth (optional)

• Additional Function: Data backup and restore to USB

• Printing Device:  USB port, Thermal Printer (Optional)

• Measured Weight: 10 ~ 250kg

• Weight of Main Unit: Approx. 18kg

• Applicable Height: 50 ~ 220 cm

• Measured Height: 100 ~ 210 cm

• Applicable Age: 1~99 years old

• Dimensions - Main Unit: 641x436x1029 [WxLxH] mm    Main Unit+Height Meter 795x436x2327 [WxLxH] mm

• Measurement Duration: Approx. 30 seconds

• Operating Conditions: Ambient temperature range +5 to +40℃, Relative humidity range 15 to 93% (non-condensing)

• Storage Conditions: Ambient temperature range -25 to +70℃, Relative humidity range lower than 93% (non-condensing)

• Remote Support: Remote technical support with PC (ACCUNIQ REMOTE SUPPORT)

• Warranty: 1 Year Limited Warranty against defects of materials or workmanship on device

• ▲Warranty is only valid if an electrical adapted stabilizer is used: see compatible UPS

Measurement and Analysis Parameters

• Body Composition Analysis: Total Body Water (L), Fat Mass (kg and %), Fat-Free Mass (kg), Lean Body Mass (kg), Protein (kg), Mineral (kg), Skeletal Muscle Mass (kg)

• Analysis and History: Weight, Skeletal Muscle Mass and Body Fat Mass Analysis and History and Health Score

• Obesity Analysis: Body Mass Index, Body Fat Percentage, Degree of Obesity, Abdominal Circumference

• Abdominal Obesity Analysis: Waist Hip Ratio, Visceral Fat Level, Visceral Fat Area, Visceral Fat Mass, Waist to Hip Ratio (WHR) and Abdominal Fat Ratio Assessment

• Segmental Analysis: Segmental Lean Mass and Segmental Fat (5 body parts: right arm, right leg, left arm, left leg, and trunk)

• Body Balance Assessment: Left and Right of the Upper Body, Left and Right of the Lower Body

• Body composition History Graph: Weight, Skeletal Muscle Mass, Body Fat Percentage

• Weight Control: Body Mass Index, Obesity Degree (%), Target Weight (kg), and Weight/Fat/Muscle Control (kg)

• Weight Control Targets: Recommended Weight, Weight Control Value, Muscle Control Value, Fat Control Value, Extracellular Water Ratio

• Comprehensive evaluation: Body type, Biological Age, Obesity Degree, Abdominal Circumference, Total Score, Basal Metabolic Rate, Total Energy Expenditure

• Impedance (#15: By Body Parts and By Frequencies)

• Blood Pressure (When Interlocked with the Hematomanometer), QR Code

Measurement and Analysis Items [Children Result]

• Body Composition Analysis: Weight, Total Body Water (L), Fat Mass (kg and %), Muscle Mass (kg), Fat-Free Mass (kg), Lean Body Mass (kg), Protein (kg), Mineral (kg), Skeletal Muscle Mass (kg)

• Muscle & Fat Analysis: Weight, Skeletal Muscle Mass, Body Fat Mass

• Obesity Analysis: Body Mass Index, Body Fat Percentage, Waist Hip Ratio (WHR)

• Growth Chart: Height and Weight

• Comprehensive Evaluation: Body Type, Basal Metabolic Rate, Total Energy Expenditure, Body Cell Mass, Degree of Obesity

• Body Balance Assessment: Left and Right of the Upper Body, Left and Right of the Lower Body

• Weight Control Targets: Recommended Weight, Weight Control Value, Muscle Control Value, Fat Control Value

• Segmental Evaluation: Body Fat Mass / Lean Body Mass (Left Arm, Right Arm, Left Leg, Right Leg, Torso)

• Impedance (By Body Parts and By Frequencies), QR Code

• Intake & Consumed Calories: Basal Metabolic Rate, Total Energy Expenditure, Exercise, prescription calorie)

Body composition management application ACCUNIQ
ACCUNIQ App is a mobile service for the management of personal body composition data. You can scan the QR code of the body composition measurement result with a smart phone so clients can check the result anytime:

• Shows graphical statistical views of composition results and changes

• A Control Guide shows recommendations on caloric intake and exercise levels to reach healthy ranges

• Stores all measurements and shows historical graphing of measurement levels and healthy ranges

Accuniq remote support program

You can use the USB Wi-Fi dongle, which is provided for easy use of the device, to connect to the Selvas Healthcare C/S division and receive remote service more conveniently when checking or repairing the device:

• Even if you don't know how to use the device, you can set its options through remote control

• You can remove measurement errors by checking the offset value, performing calibration, etc.

• You can recover the firmware remotely from a PC

Optional Equipment

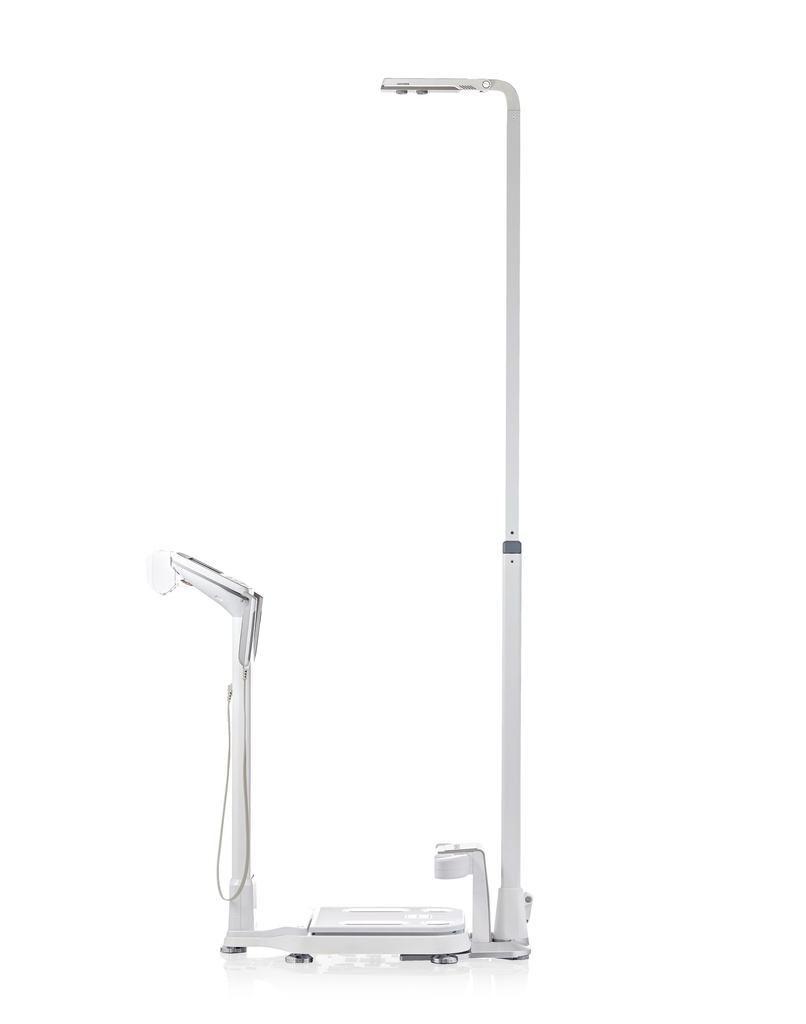

• The Ultrasonic Anthropometer (optional): This option accurately and quickly measures your height automatically with the distance analysis method based on the AI and ultrasonic sensor. The performance of the anthropometer enhances the confidence level of the analysis.

• Fully Automatic Sphygmomanometer (optional): The fully automatic sphygmomanometer can be connected to the device for hospitals to control your blood pressure in connection with your body fat, which can help you manage your body weight more efficiently

• Result sheet for Children

• USB Memory

• Thermal Printer ACACTPBC380 Bluetooth

View BC380 brochure

View the BC380 sample report for adults

View the BC380 sample report for Children

Download A4 blank report sheet for Adults and for Children

Watch an introductory video about the BC380
Watch the measurement guide video of the BC380
Read about the research base and articles of the Accuniq devices
See the CE declaration of conformity and the CE and ISO certificates.
