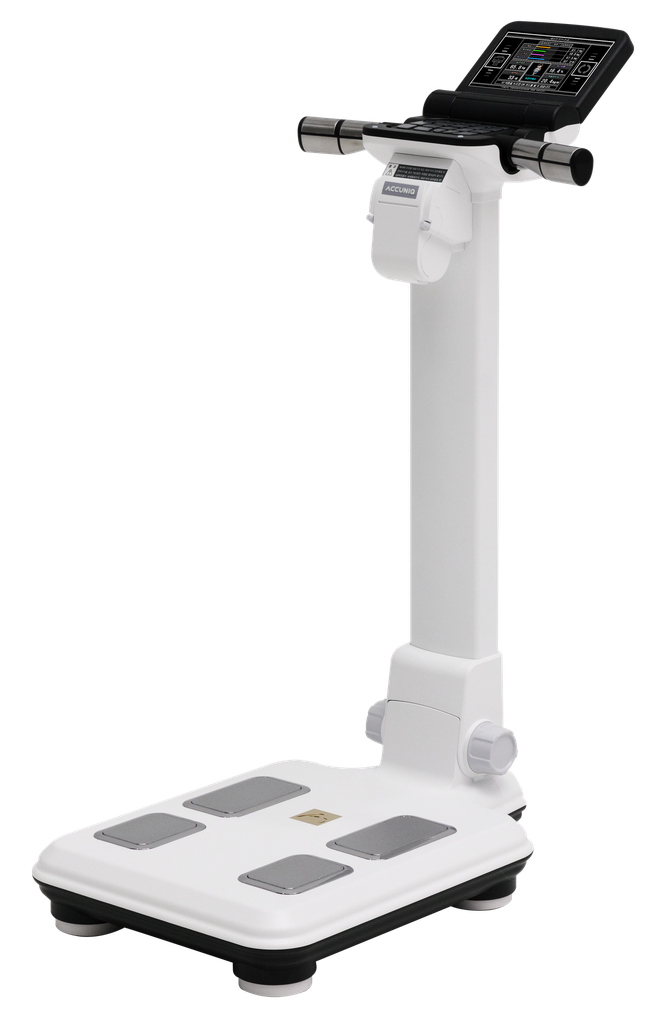

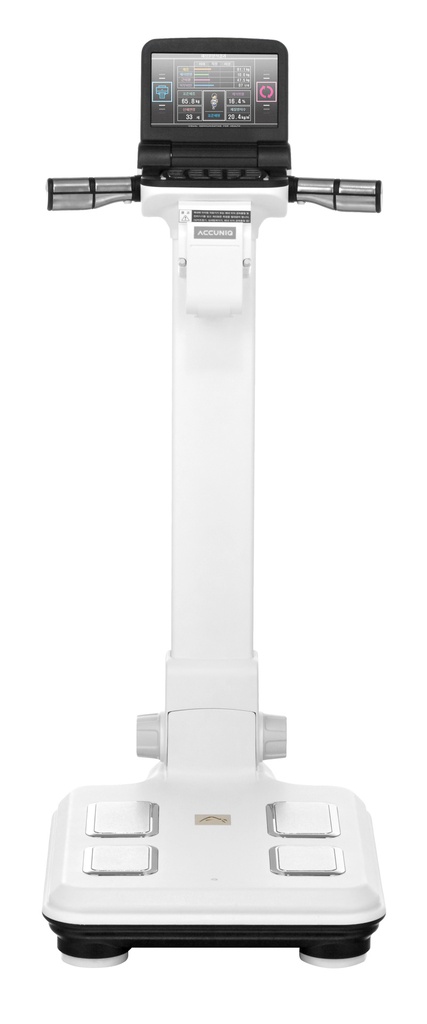

ACCUNIQ BC300 Body Composition Analyzer

A professional BIA designed specifically for portability with highly accurate results.

Features

• The BC300 utilizes the most advanced bio-electrical impedance (BIA) analysis technology to provide accurate and dependable results that have been validated by DEXA analysis.

• 3 frequency analysis (5, 50, 250 kHz)

• Built in Thermal printer: to use to quickly and easily print the analysis.

• User Configurable Modes: Adult, athlete, wrestler and goal Setter

• Client Tracking Software Provided (ACCUNIQ MANAGER)

• Tetra-polar electrode method using 8 touch electrodes

• Whole body and Segmental measurement (arms, legs and trunk)

• Number of records saved on device (users and history data): 100,000

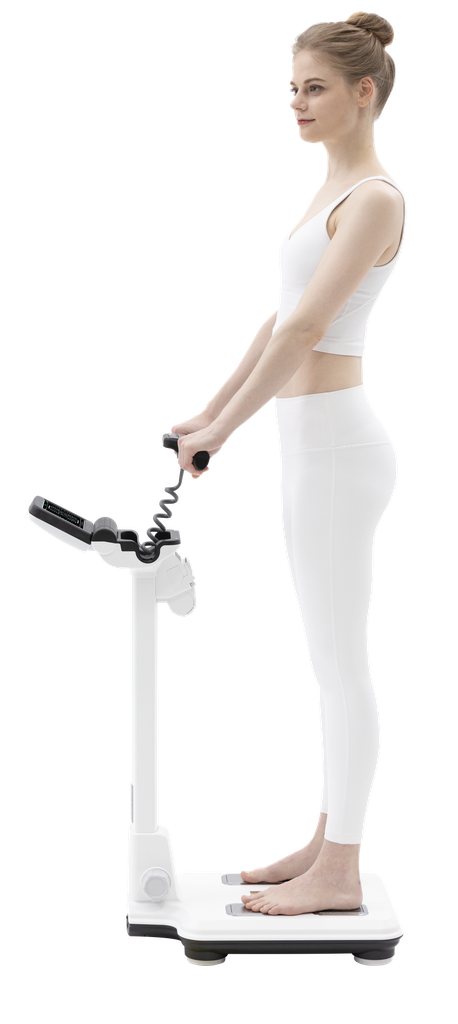

• The measurement handle is connected with the cable and may be used by a user of any height

• Printing Logo: Printing logo or the name of hospital, address, contact information on the pre-printed result sheet

• Touch Screen: Touch screen’s sensor location adjustable

• ID Usage: It is selected whether ID is used for subjects or not

• Scale Offset: Compensating measured value of weight scale

• Clothes: Compensating the weight of clothes worn

• Print Position: Adjusting print position to fit to the pre-formatted result sheet in the direction of up/down and left/right

• Date Time: Setting current date and time

• Measurement Result (Client Tracking Software Provided): ACCUNIQ MANAGER

• Screen: 7-Inch-Wide Color LCD

• Measurement Current: Approx. within 280μA

• Measurement Range: 100-950 Ω

• Power Consumption: 60VA

• Power Consumption: Input (AC 100~240V, 50~60Hz), Output (DC 12V, 5A adapter)

• Input interface: Key pad, PC remote control

• Transmission Device: USB port

• Additional Function: Data backup and restore to USB

• Printing Device:  USB port, Thermal Printer

• Weight of Main Unit: Approx. 10kg

• Measured Weight: 10 ~ 200kg

• Applicable Height: 50 ~ 220 cm

• Applicable Age: 1~99 years old

• Remote Support: Remote technical support with PC (ACCUNIQ REMOTE SUPPORT)

• Dimensions - Main Unit: 400x735x890 [WxLxH] mm    Main Unit+Height Meter 400x845x2250 [WxLxH] mm

• Measurement Duration: Approx. 30 seconds

• Printing Logo: Printing the hospital name, address, contact information, and logo available

• Operating Conditions: Ambient temperature range +5 to +40℃, Relative humidity range 15 to 93% (non-condensing)

• Storage Conditions: Ambient temperature range -25 to +70℃, Relative humidity range lower than 93% (non-condensing)

• Warranty: 1 Year Limited Warranty against defects of materials or workmanship on device

• ▲Warranty is only valid if an electrical adapted stabilizer is used: see compatible UPS

Measurement and Analysis Parameters

• Body Composition Analysis: Weight, Total Body Water (L), Body Fat Mass (kg and %), Fat-Free Mass (kg), Lean Body Mass, Soft Lean Mass (kg), Protein (kg), Mineral (kg), Skeletal Muscle Mass (%)

• Analysis and History: Weight, Skeletal Muscle Mass and Body Fat Analysis and History

• Segmental Analysis: Segmental Lean Mass and Segmental Fat (5 body parts: right arm, right leg, left arm, left leg, and trunk)

• Weight Control: Body Mass Index, Obesity Degree (%), Target Weight (kg), and Weight/Fat/Muscle Control (kg)

• Abdominal Fat Analysis: Visceral Fat Level, Visceral Fat Area, Waist to Hip Ratio (WHR) and Abdominal Fat Ratio Assessment

• Comprehensive evaluation: BMI, Body composition History, Body type, Biological Age, Body Cell Mass, Obesity Degree, Abdominal Circumference

• Segmental Weight and Impedance

• Intake & Consumed Calories: Basal Metabolic Rate, Total Energy Expenditure, Exercise, prescription calorie)

Optional Equipment

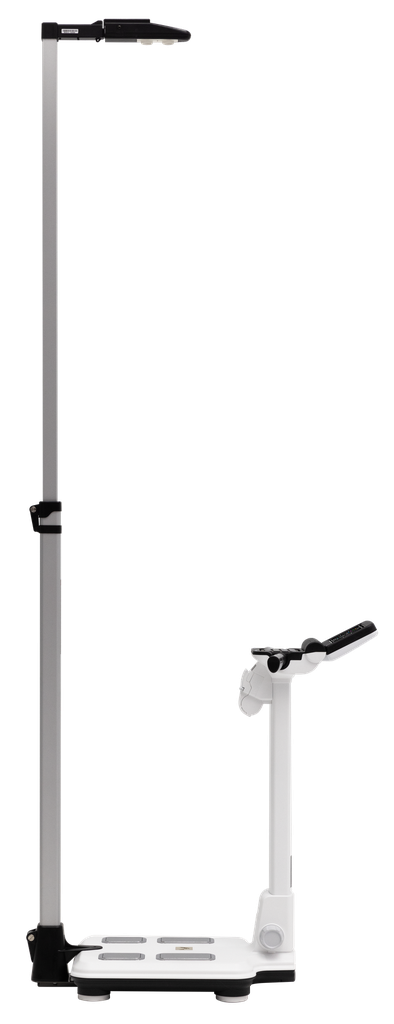

• The Ultrasonic Anthropometer (optional): This option accurately and quickly measures your height automatically with the distance analysis method based on the AI and ultrasonic sensor. The performance of the anthropometer enhances the confidence level of the analysis.

• Fully Automatic Sphygmomanometer (optional): The fully automatic sphygmomanometer can be connected to the device for hospitals to control your blood pressure in connection with your body fat, which can help you manage your body weight more efficiently

• result sheet for Infants

• Bluetooth

View BC300 brochure

View the BC300 sample report

Download blank A4 paper sheet for report

Watch an introductory video about the BC300
Watch the measurement guide video of the BC300
Read about the research base and articles of the Accuniq devices
See the CE declaration of conformity and the CE and ISO certificates.
