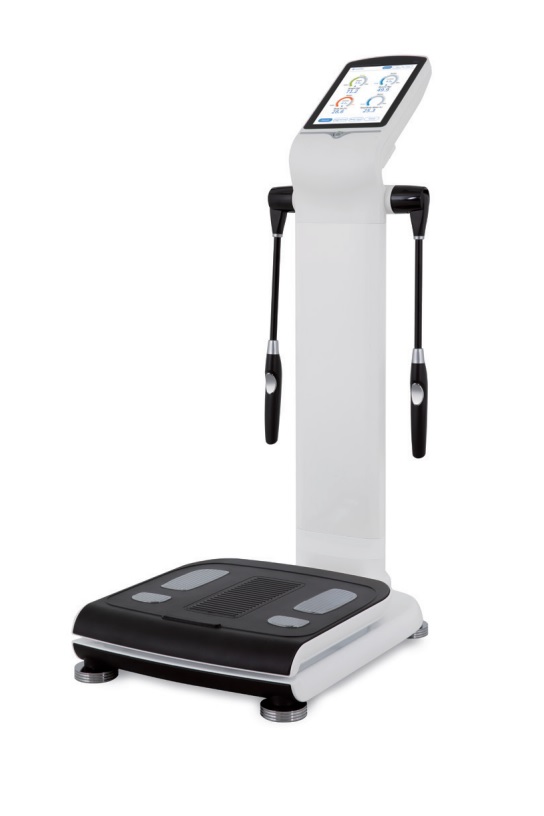

The most advanced Body Composition Analyzer using Bioelectrical Impedance Analysis for healthcare professionals.
Features
High correlation with Gold Standard Technique - DEXA
Optimization algorithm technology utilized to increase the precision of Body Composition Analysis and its reliability verified through clinical trials
Multi-frequency analysis (6 frequencies: 5, 10, 50, 100, 500, 1000)
Tetrapolar 8-point tactile electrode method
High-quality, easy-to-use, user-friendly design with on-screen scale imaging system
Ergonomically designed, rotating hand electrodes that allow the user to take the test with ease
Focuses on personalized user management based on diverse input interface and database management
Activates "Blind Mode" to hide weight and fat result on screen for the privacy of individual users. Also operates in "Expert Test Mode", "Self-Test Mode" and "Classmate Mode"
Measures weight and allows manual weight input
Number of records saved on device (users and history data): 100,000
Age of use: 3-99 years old
Age-specific analysis: analysis result sheet for both children and adult-use
Screen: 10.4 inch (600x1024), color touch LCD, GUI (Graphical User Interface)
Systematic body composition analysis: i55 has many expert uses such as medical research, compositional change analysis and sports medicine, etc.
A variety of systematic analysis will be made: body fat change prediction, children's growth curve monitoring system, and a broad range of well-referenced clinical database
Data Management: Data Searching, Data Backup/Recovery/Merge, Data Exporting (in Excel Format)
Calibration is not needed. Device allows auto-maintenance and calibration for: sound, brightness, LCD, frequencies, touch features, etc.
Free English software (with online and cloud options) and free app
Report can be customized with healthcare professional's logo and personal information
Adult report and Children report (from the i55 to the external printer) and more than 10 reports from the PC software
Warranty: 2-Year Limited Warranty against defects of materials or workmanship on device
Warranty is only valid if an electrical adapted stabilizer is used
Certifications: CE & FDA
Communication: RS-232, USB, Mini-USB B 1ea, Wi-Fi, Bluetooth, LAN
Measurement Current: 200 uArms
Measurement Range: 10 ~1000Ω
Power Source: DC adaptor (input: 100-240VAC, 50-60 Hz, 1.5A/ Output: 12V, 5.0 A)
External Interface: RS-232C (9pin serial) 2ea, USB host (type A) 2ea, Mini-USB B (type B) 1ea, Bluetooth (optional), Wi-Fi (optional)
Input interface: Full touchscreen, Barcode reader
Additional Function: Data backup and restore to USB, DB export to CSV file
Measured Weight: 2 ~ 250 kg (Resolution: 50 g)
Weight: 20 kg
Range of Height: 60 ~ 220 cm
Dimensions: 360 x 559 x 1077 [WxLxH] mm
Measurement Duration: about 60 seconds
Operating Conditions: Humidity: 30% ~ 75% - Temperature: +10ºC ~ +40ºC - Atmospheric pressure: 70 ~ 101.3kPa
Storage Conditions: Humidity: 10% ~ 80% - Temperature: +10ºC ~ +60ºC - Atmospheric pressure: 50 ~ 101.3kPa
Measurement and Analysis Parameters
Body Composition Analysis: Total Body Water (L and %), Muscle Mass (Kg), Fat Mass (Kg), Fat-Free Mass (Kg), Body Cell Mass, Protein (Kg), Mineral, Osseous Mineral (Kg), Skeletal Muscle Mass (Kg), Intracellular Water (L and %), Extracellular Water (L and %), Extracellular Water Ratio, Age-Specific Assessment (BMI/SMI/FMI)
Muscle & Fat Analysis: Weight, Muscle, Body Fat(%) Assessment with previous result
Segmental Analysis: Segmental Muscle, Fat, Intra and Extracellular Water, Extracellular Water Ratio, Phase Angle and Body Balance Assessment
Body Type Analysis: Body Type Table and Graph Assessment with previous result
Body Composition History: History Graph for Weight, Muscle, Body Fat, Total Body Water, ECW and Abdominal History
Weight Control: BMI, FMI, FFMI, SMI, Obesity Degree, Desirable Weight, Weight/Fat/Muscle Control
Abdominal Obesity Analysis: Waist Circumference, Abdominal Fat Ratio, Visceral Fat Area, Subcutaneous Fat Area, VSR, and WHtR
Intake & Consumed Calories: Basal Metabolic Rate, Total Energy Expenditure, Calorie Consumption, Target Body Fat, Exercise intensity, Estimated Completion Period andNutrition Guide
Mediana Score, Segmental Impedance /Whole Body Phase Angle, Segmental Circumference (Left upper arm, Right upper arm, Waist, Left thigh Right thigh), Age Matched Analysis
Nutrition and Exercise Recommendation, Diet Plan based on Calories and % of macronutrients, Physical Activity Frequency and Calories, Food Lists, Recommended Intake of Water/Protein, Water before Exercise, Protein after Exercise, Calorie Consumption Guide (kcal/30min, based on Jogging)
Measurement and Analysis Items [Children Result]
Body Composition Analysis: Total Body Water, Muscle Mass, Fat Mass, Fat-Free Mass, Protein, Mineral, Skeletal Muscle
Muscle & Fat Analysis: Weight, Muscle, Body Fat(%) Assessment with previous result
Growth Chart: Height and Weight with 18 years old Predicted Value
Body Composition History: History Graph for Weight, Muscle, Body Fat, Height, and Mineral
Weight Control: BMI, Obesity Degree, Desirable Weight, Weight/Fat/Muscle Control
Growth Evaluation: Muscle, Skeletal, Obesity Evaluation
Body Balance: Upper and Lower Body balance Analysis
Mediana Score, Segmental Muscle and Impedance
Nutrition and Exercise Recommendation, Diet Plan based on Calories and % of macronutrients, Physical Activity Frequency and Calories, Food Lists
